Review of Varianta 65


Varianta 65
Varianta 65 anno 1976. Dehler Varianta 65

Basic specs.

sail specifications
The Varianta 65 is a small sailboat designed by the Dutch maritime architect Ericus Gerhardus van de Stadt in the early seventies. The Varianta 65 is built by the German yard Dehler Yachtbau GmbH.

Looking for a new boat? Find a Varianta 65 or similar boat for sale

Hull

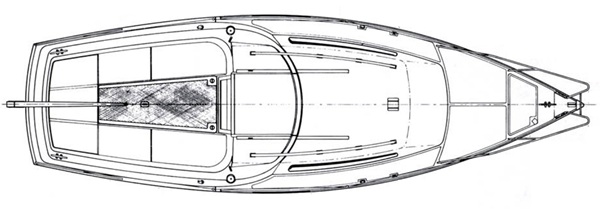

Deck plan
Deck plan of Varianta 65.

Both the hull and the deck is made of fibreglass. A hull made of fibreglass requires only a minimum of maintenance during the sailing season.


Interior

The boat is equipped with 4 berths and a galley.


Cockpit
Cockpit
Cockpit of Varianta 65.
Rig

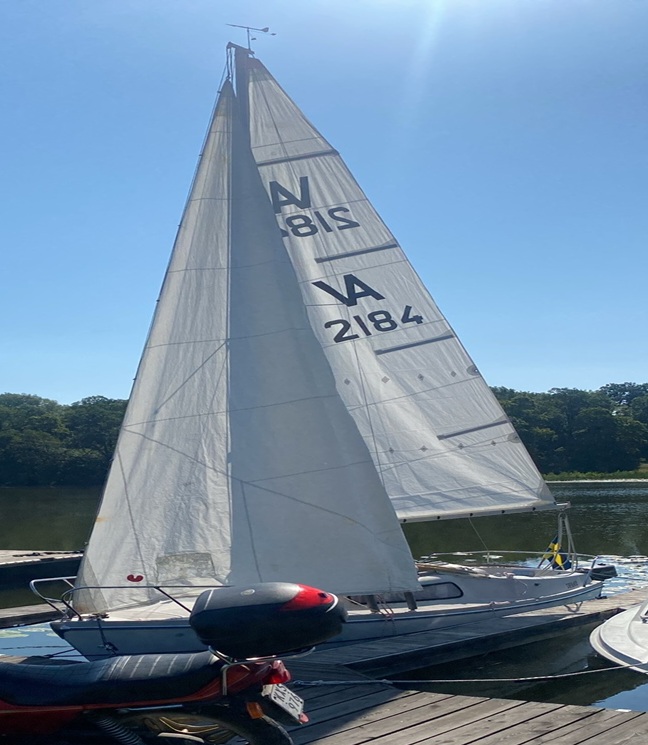

Rig
Rig of Varianta 65. Sails well on lake Mälaren. Retractable keel and transport cradle.

The Varianta 65 is built with a masthead rig. The sail area for the mailsail + jib is 16.8 m2 (180.6 ft2). The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.


Keel

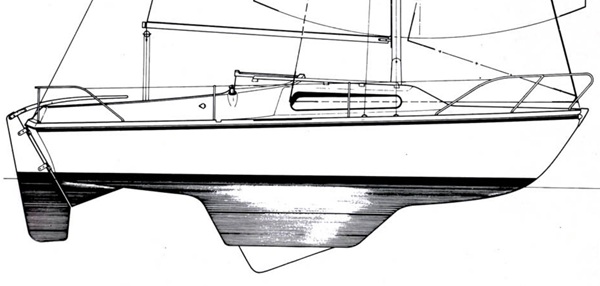

Keel
Keel of Varianta 65.

Stub/CentreBoard

The Varianta 65 is built with a stub/centreboard keel. A stub/centerboard keel is a fixed stub keel with a retractable centerboard, allowing to sail both coastal and inland waters.

The boat can enter even shallow marinas as the draft is just about 0.70 - 0.80 meter (2.30 - 2.60 ft) dependent on the load. See immersion rate below.


Engine

An outboard motor is often used on this boat for docking and maneuvering.


Trailer

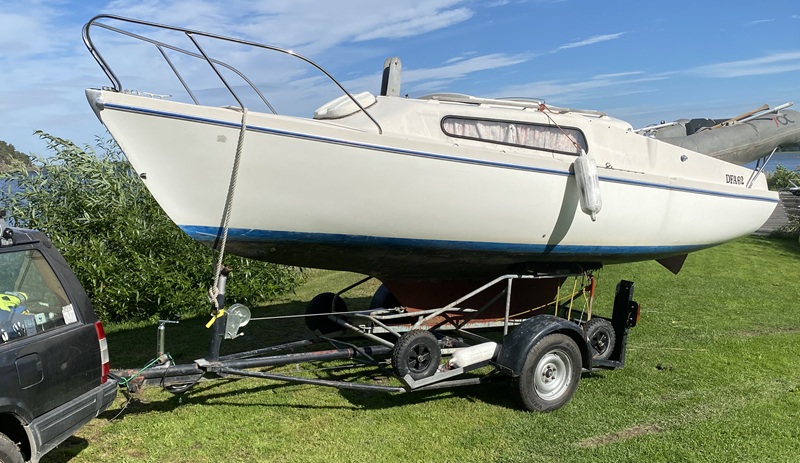

Boat on trailer
Varianta 65 on trailer. A sturdy trailer with a boat cradle for easy loading and unloading via a ramp.

Sailing characteristics

This section covers widely used rules of thumb to describe the sailing characteristics. Please note that even though the calculations are correct, the interpretation of the results might not be valid for extreme boats.

Theoretical Maximum Hull Speed

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 5.6 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.


Immersion rate

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Varianta 65 is about 75 kg/cm, alternatively 425 lbs/inch.
Meaning: if you load 75 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 425 lbs cargo on the boat it will sink 1 inch.


Sailing statistics

This section is statistical comparison with similar boats of the same category. The basis of the following statistical computations is our unique database with more than 26,000 different boat types and 350,000 data points.

L/B (Length Beam Ratio)

What is L/B (Length Beam Ratio)?

The l/b ratio for Varianta 65 is 3.10.

Wide Slim 82% 0 50 100
Compared with other similar sailboats it is slimmer than 82% of all other designs. It seems that the designer has chosen a significantly more speedy hull design.


Maintenance

Bottom Paint

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 14m2 (150 ft2).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.


Rig

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.



Guiding dimensions of running rig
UsageLengthDiameter
Jib sheet 6.5 m(21.3 feet)10 mm(3/8 inch)
Genoa sheet6.5 m(21.3 feet)10 mm(3/8 inch)
Mainsheet 16.2 m(53.3 feet)10 mm(3/8 inch)
Spinnaker sheet14.3 m(46.9 feet)10 mm(3/8 inch)

Keel Inspection

Keels with moving parts need to be inspected and maintained on a regular basis according to advice given in owner's manual. Manufacturers usually advise which maintenance work can be done by the owner and which work should be carried out by a suitably experienced boatyard.

Boat owner's ideas

This section is reserved boat owner's modifications, improvements, etc. Here you might find (or contribute with) inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what you have done.

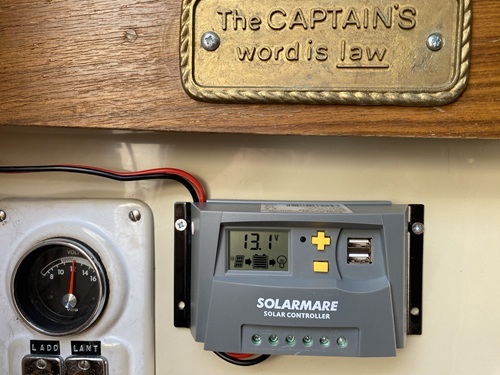

Varianta 65
Varianta 65.




Finally

We are always looking for new photos. If you can contribute with photos for Varianta 65 it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.
