Review of Phantom 31
Basic specs.
Looking for a new boat? Find a Phantom 31 or similar boat for sale
Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season. And outside the sailing season, just bottom cleaning and perhaps anti-fouling painting once a year - a few hours of work, that's all.

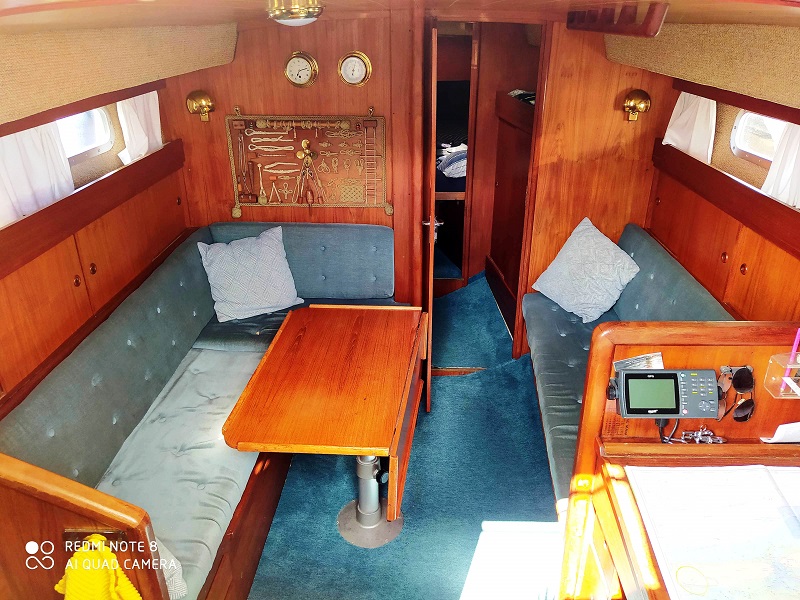

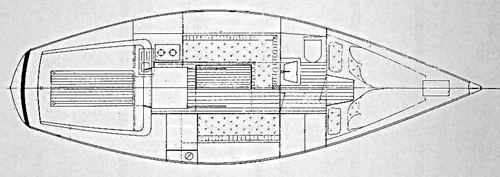

The boat is equipped with one cabin, 6 berths, a galley, 120.0 liter fresh water capacity and toilet facility.
The Phantom 31 is built with a masthead rig. The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.
The Phantom 31 has been built with different keel alternatives.
Fin keel
The Phantom 31 is built with a fin keel. A boat with a fin keel is more manoeuvrable but has less directional stability than a similar boat with a full keel.
The boat can enter most marinas as the draft is just about 1.50 - 1.60 meter (4.92 - 5.22 ft) dependent on the load. See immersion rate below.
DaggerBoard aka Sword
The Phantom 31 is built with a daggerboard keel. A daggerboard is a lifting keel that can be lowered and raised, allowing the boat to enter shallow waters as well.
Phantom 31 can enter even shallow marinas as the draft is just about 1.10 - 1.20 meter (3.61 - 3.91 ft) dependent on the load. See immersion rate below.
The boat may be equipped with an inboard Bukh diesel engine at 20 hp (14 kW).
The transmission is a shaft drive. A shaft drive will in the long run require less maintenance than other types of drive e.g. a sail drive.
The fuel tank has a capacity of 40.0 liters (10 US gallons, 8 imperial gallons).
Sailing characteristics
This section covers widely used rules of thumb to describe the sailing characteristics. Please note that even though the calculations are correct, the interpretation of the results might not be valid for extreme boats.
What is Capsize Screening Formula (CSF)?
The capsize screening value for Phantom 31 is 1.81, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.
The immersion rate is defined as the weight required to sink the boat a certain level.
The immersion rate for Phantom 31 is about 179 kg/cm, alternatively 1005 lbs/inch.
Meaning: if you load 179 kg cargo on the boat then it will sink 1 cm.
Alternatively, if you load 1005 lbs cargo on the boat it will sink 1 inch.
Sailing statistics
This section is statistical comparison with similar boats of the same category. The basis of the following statistical computations is our unique database with more than 26,000 different boat types and 350,000 data points.
What is L/B (Length Beam Ratio)?
The l/b ratio for Phantom 31 is 3.30.
The ballast ratio for Phantom 31 is 40%.
Maintenance
If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.
| Usage | Length | Diameter | ||
| Jib sheet | 9.4 m | (30.8 feet) | 12 mm | (1/2 inch) |
| Genoa sheet | 9.4 m | (30.8 feet) | 12 mm | (1/2 inch) |
| Mainsheet | 23.5 m | (77.1 feet) | 12 mm | (1/2 inch) |
| Spinnaker sheet | 20.7 m | (67.8 feet) | 12 mm | (1/2 inch) |
