Review of Friendship 33

Both the hull and the deck is made of fibreglass. A hull made of fibreglass requires only a minimum of maintenance during the sailing season.

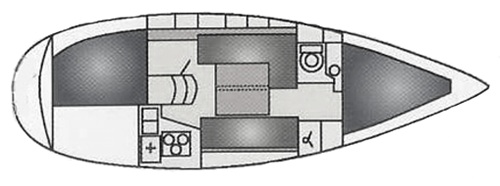

The boat is equipped with 2 cabins, 7 berths, 200 liters (52 US gallons, 43 imperial gallons) fresh water capacity and toilet facility.

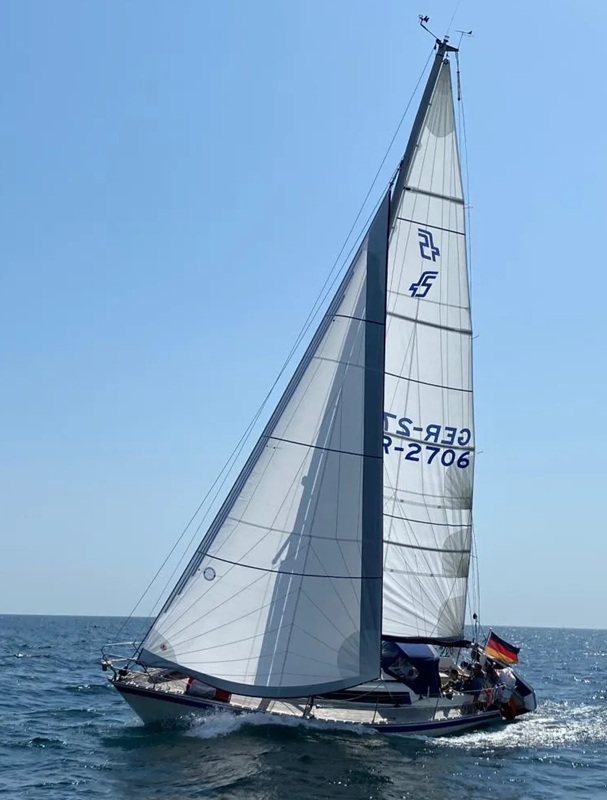

The Friendship 33 is built with a fractional rig. The sail area for the mailsail + jib is 51.3 m² (552.2 ft²). A fractional rig has smaller headsails which make tacking easier, which is an advantage for cruisers and racers, of course. The downside is that having the wind from behind often requires a gennaker or a spinnaker for optimal speed.

The Friendship 33 has been built with different keel alternatives.

Fin keel

One option is a fin keel. The fin keel is the most common keel and provides splendid manoeuvrability. The downside is that it has less directional stability than a long keel.

The boat can enter most marinas as the draft is just about 1.75 - 1.85 meter (5.74 - 6.04 ft) dependent on the load. See immersion rate below.

Fin keel

Another option is a fin keel.

Friendship 33 can enter even shallow marinas as the draft is just about 1.30 - 1.40 meter (4.27 - 4.57 ft) dependent on the load. See immersion rate below.

Wing keel

Yet another option is a wing keel keel. But be aware that even though a Wing Keel keel is very good for speed racing, a fishing nets and the like in the water can easily make you into a troublesome situation.

The boat can enter even shallow marinas as the draft is just about 1.10 - 1.20 meter (3.61 - 3.91 ft) dependent on the load. See immersion rate below.

Stub/CentreBoard

Yet another option is a stub/centreboard keel. A stub/centerboard keel is a fixed stub keel with a retractable centerboard, allowing to sail both coastal and inland waters.

The boat can enter even shallow marinas as the draft is just about 1.12 - 1.22 meter (3.67 - 3.97 ft) dependent on the load. See immersion rate below.

The fuel tank has a capacity of 50 liters (13 US gallons, 10 imperial gallons).

The Friendship 33 has been equipped with different engine alternatives.

Alternative 1:

Friendship 33 may be equipped with an inboard Volvo Penta diesel engine at 29 hp (21 kW). Calculated max speed is about 6.9 knots

The transmission is a saildrive.

Alternative 2:

The boat may be equipped with an inboard diesel engine at 18 hp (13 kW). Calculated max speed is about 5.4 knots

The transmission is a shaft drive. A shaft drive will in the long run require less maintenance than other types of drive e.g. a sail drive.

What is Capsize Screening Formula (CSF)?

The capsize screening value for Friendship 33 is 2.06, indicating that this boat would not be accepted to participate in ocean races.

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 6.8 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Friendship 33 is about 172 kg/cm, alternatively 963 lbs/inch.
Meaning: if you load 172 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 963 lbs cargo on the boat it will sink 1 inch.

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for Friendship 33 is 20.8.

Comparing this ratio with similar sailboats show that it is more comfortable than 31% of all similar sailboat designs. This comfort value is just below average.

What is L/B (Length Beam Ratio)?

The l/b ratio for Friendship 33 is 3.01.

Compared with other similar sailboats it is more spacy than 66% of all other designs. It seems that the designer has chosen a slightly more spacy hull design.

What is a Ballast Ratio?

The ballast ratio for Friendship 33 is 35%.

This ballast ratio is higher than 21% of all similar sailboat designs. Since the ballast ratio and the righting moment (i.e. better ability to resist heeling) is strongly correlated, a ballast ratio significantly below average indicates a very low ability to resist heeling.

What is Displacement Length Ratio?

The DL-ratio for Friendship 33 is 226 which categorizes this boat among 'moderate racers'.

62% of all similar sailboat designs are categorized as heavier. A light displacement requires less sailarea and has higher accellerations.

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 30m² (322 ft²).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.

Keels with moving parts need to be inspected and maintained on a regular basis according to advice given in owner's manual. Manufacturers usually advise which maintenance work can be done by the owner and which work should be carried out by a suitably experienced boatyard.

This section is reserved boat owner's modifications, improvements, etc. Here you might find (or contribute with) inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what you have done.

We are always looking for new photos. If you can contribute with photos for Friendship 33 it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.

[Ref 1]: ISO 8666 Small craft — Principal data.
[Ref 3]: ISO 12215-5 Small craft — Hull construction and scantlings.
