Review of Saphir III

Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season. And outside the sailing season, just bottom cleaning and perhaps anti-fouling painting once a year - a few hours of work, that's all.

The interior is like most other boats made of teak. Teak has the advantage of being naturally very oily and therefore water-repellent, which is suitable on boats.
The boat is equipped with one cabin, 5 berths, a galley, 160.0 liter fresh water capacity and toilet facility.

Note: the boat has also been sold to be self-made/-interiored, which means that the quality of each boat may vary.

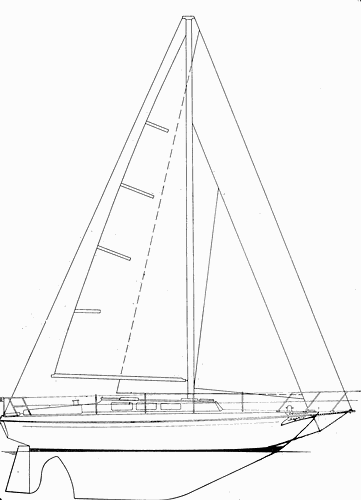

The Saphir III is built with a masthead rig. The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.

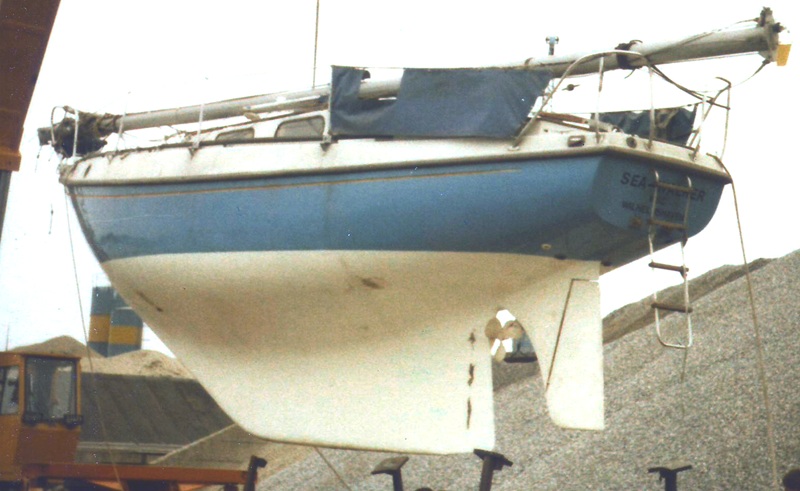

Full keel

The Saphir III is built with a long keel. A full keel provide a better directional stability than a similar boat with a fin keel; on the other hand, better directional stability means also that the boat is more difficult to handle in a harbour with less space.

The keel is made of lead. Compared with iron, lead has the advantage of being 44% heavier, which allows a smaller keel and hence less water resistance and higher speed.

Saphir III can enter most marinas as the draft is just about 1.55 - 1.65 meter (5.09 - 5.39 ft) dependent on the load. See immersion rate below.

The Saphir III has been equipped with different engine alternatives.

Alternative 1:

The boat may be equipped with an inboard Volvo Penta MD2 diesel engine at 16 hp (11 kW). Calculated max speed is about 4.8 knots

The transmission is a shaft drive. A shaft drive will in the long run require less maintenance than other types of drive e.g. a sail drive.

Alternative 2:

The boat may be equipped with an inboard Volvo Penta 2030 diesel engine at 29 hp (21 kW). Calculated max speed is about 6.5 knots

The transmission is a saildrive.

The fuel tank has a capacity of 70.0 liters (18 US gallons, 15 imperial gallons).

What is Capsize Screening Formula (CSF)?

The capsize screening value for Saphir III is 1.68, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 6.4 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Saphir III is about 124 kg/cm, alternatively 695 lbs/inch.
Meaning: if you load 124 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 695 lbs cargo on the boat it will sink 1 inch.

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for Saphir III is 30.2.

Comparing this ratio with similar sailboats show that it is more comfortable than 85% of all similar sailboat designs. This is a comfort value significantly above average.

What is L/B (Length Beam Ratio)?

The l/b ratio for Saphir III is 3.51.

Compared with other similar sailboats it is slimmer than 85% of all other designs. It seems that the designer has chosen a significantly more speedy hull design.

What is a Ballast Ratio?

The ballast ratio for Saphir III is 25%.

This ballast ratio shows a righting moment that is higher than 1% of all similar sailboat designs. A righting moment (ability to resist heeling) significantly below average.

What is Displacement Length Ratio?

The DL-ratio for Saphir III is 322 which categorizes this boat among 'medium weight cruisers'.

21% of all similar sailboat designs are categorized as heavier. A heavy displacement combined with smaller water plane area has lower acceleration and is more comfortable.

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 22m² (236 ft²).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.

This section is reserved boat owner's modifications, improvements, etc. Here you might find (or contribute with) inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what you have done.

We are always looking for new photos. If you can contribute with photos for Saphir III it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.

[Ref 1]: ISO 8666 Small craft — Principal data.
[Ref 3]: ISO 12215-5 Small craft — Hull construction and scantlings.
