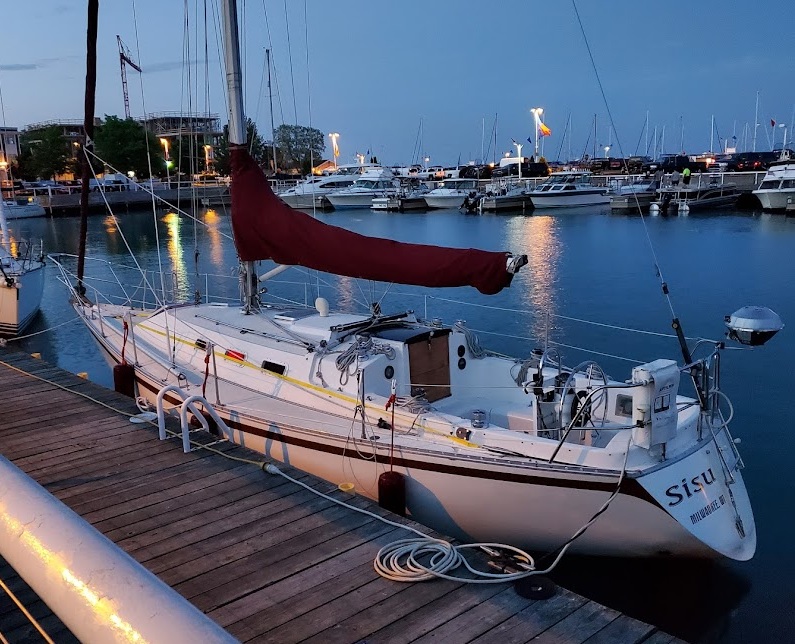

Review of CS 33

Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season.

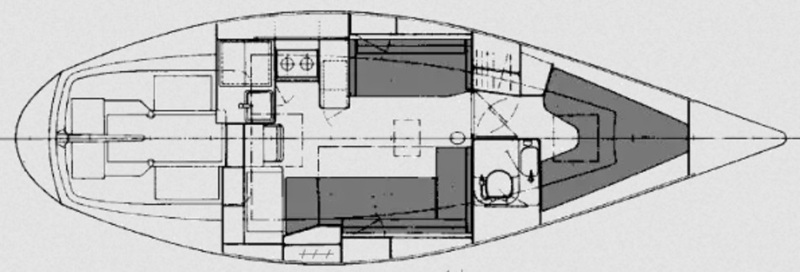

Floor plan of CS 33.

The interior is like most other boats made of teak. Teak has the advantage of being naturally very oily and therefore water-repellent, which is suitable on boats.
The boat is equipped with one cabin, 5 berths, a galley, 227.0 liter fresh water capacity, toilet facility and 75.0 liter waste water capacity.

The CS 33 has been built with different keel alternatives.

Fin keel

One option is a fin keel. A boat with a fin keel is more manoeuvrable but has less directional stability than a similar boat with a full keel.

The boat can enter even shallow marinas as the draft is just about 1.40 - 1.50 meter (4.59 - 4.89 ft) dependent on the load. See immersion rate below.

Fin keel

Another option is a fin keel. The fin keel is the most common keel and provides splendid manoeuvrability. The downside is that it has less directional stability than a long keel.

The keel is made of lead. Compared with iron, lead has the advantage of being 44% heavier, which allows a smaller keel and hence less water resistance and higher speed.

CS 33 can enter most marinas as the draft is just about 1.77 - 1.87 meter (5.81 - 6.11 ft) dependent on the load. See immersion rate below.

The boat may be equipped with an inboard Bukh diesel engine at 20 hp (14 kW). Calculated max speed is about 5.4 knots

The transmission is a shaft drive. A shaft drive will in the long run require less maintenance than other types of drive e.g. a sail drive.

The fuel tank has a capacity of 90.0 liters (23 US gallons, 19 imperial gallons).

What is Capsize Screening Formula (CSF)?

The capsize screening value for CS 33 is 1.99, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 6.9 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for CS 33 is about 175 kg/cm, alternatively 984 lbs/inch.
Meaning: if you load 175 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 984 lbs cargo on the boat it will sink 1 inch.

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for CS 33 is 23.0.

What is L/B (Length Beam Ratio)?

The l/b ratio for CS 33 is 3.09.

What is Displacement Length Ratio?

The DL-ratio for CS 33 is 242 which categorizes this boat among 'light crusers & offshore racers'.

What is SA/D (Sail Area Displacement ratio)?

The SA/D for CS 33 with ISO 8666 reference sail is 17.2, with a 135% genua the SA/D is 20.6.

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 28m² (301 ft²).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.

Dimensions of sail.

Are your sails worn out? You might find your next sail here: Sails for Sale

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.
